FPN 10 - 3000 / 2HH

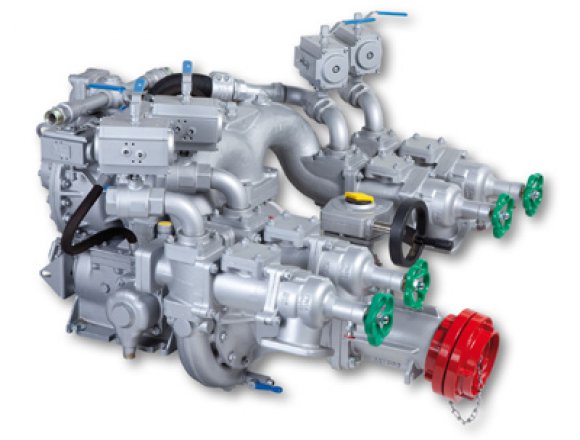

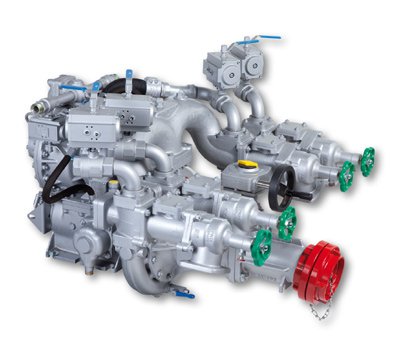

ZIEGLER FPN 10-3000 /2HH Fire Pump

Ziegler fire pump for 105 kW (143 PS) or higher PTO’s (truck mounted)

Pump outlet

Normal pressure pump: 3000l/min at 10 bar

High pressure pump: 400l/minat 40 bar

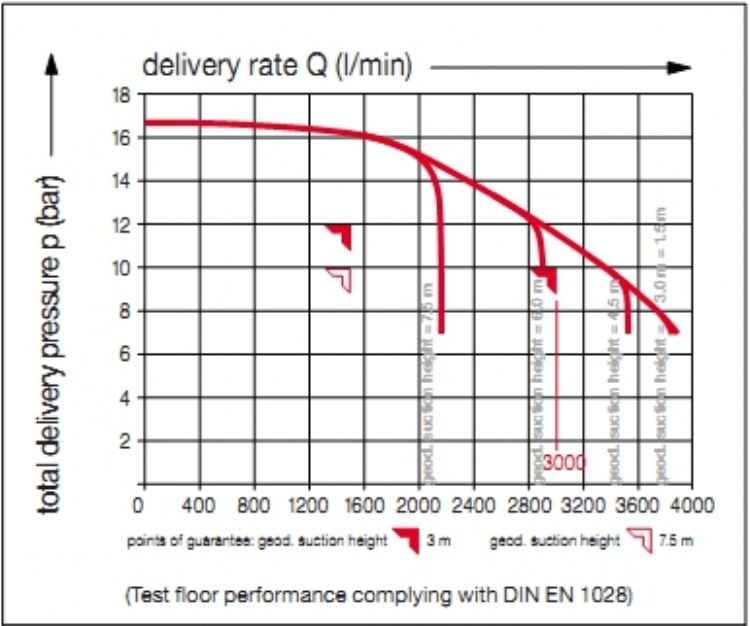

Max pump performance according to DIN EN 1028;

3m geodetic suction: 3250l/min at 10 bars

1,5m geodetic suction: 3650l/min at 8 bars

Power: PTO driven

Main fittings: 4 units of normal pressure outlet, 1 unit of A110 suction head, 1 unit of tank filling line, 1 unit of tank suction line

Priming system: TROKOMAT PLUS fully automatic

Indicators:

Normal Pressure Pump: FPN 10 - 4000 / 2HH
